Q-Cell Panels

Q CELLS has supported the Australian community since 2009

Q-Cell Panels

3c1ba75c Cd96 4859 Aef3 B1e3986f2a12



https://www.q-cells.com/en/main/products/solar_panels/residential/residential03.html

Q CELLS (NASDAQ: HQCL) is a part of Hanwha Group, a Global Fortune 500 Company established in 1952 with over 55 Billion USD in total revenue and over 159 Billion USD in total assets. Hanwha Group has over 67 years’ history of financial stability and with Hanwha Group’s backing, Q CELLS is more than able to stand 25-year warranty.
All considered, Q CELLS is arguably the most secure solar company.



Q CELLS has supported the Australian community since 2009, longer than any other manufacturer currently on the market. With products developed specifically for Australian climates, unparallelled local support, and comprehensive testing facilities both in laboratories and in the field, we are the trusted provider for Australian consumers.

TOP PERFORMANCE FOR MAXIMUM POWER

BREAKING THE 21% EFFICIENCY BARRIER - Q.ANTUM DUO Z Technology with zero gap cell layout boosts module efficiency up to 21.1%.

Qcells

Q.PEAK DUO ML-G9+

ENDURING HIGH PERFORMANCE

  • Nominal Power

    370 – 395 Wp

  • Efficiency

    Up to 20.8%

  • Maximum System Voltage

    1000 V

  • Wind/Snow Load

    4000 / 5400

  • Format

    1840 mm × 1030 mm × 32 mm

  • Weight

    19.5 kg

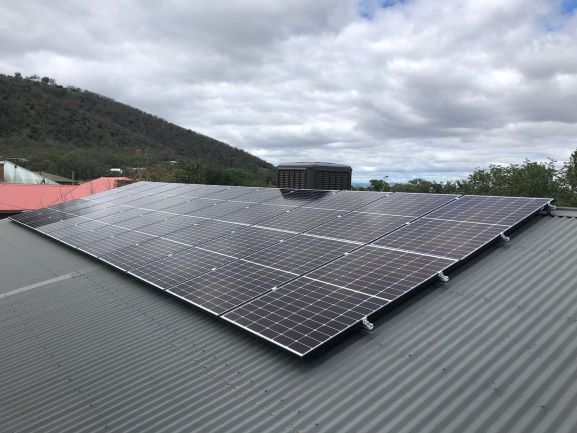

F8485d9c C799 49d7 Baf4 96740b8094fa
  • At least 98 % of nominal power during first year. Thereafter max. 0.54 % degradation per year.
  • At least 93.1 % of nominal power up to 10 years. At least 86 % of nominal power up to 25 years.
  • A RELIABLE INVESTMENT
    Inclusive 25-year product warranty and 25-year linear performance warranty 2 .

ENDURING HIGH PERFORMANCE

Long-term yield security with Anti LID Technology, Anti PID Technology 1 , Hot-            Spot Protect and Traceable Quality Tra.Q™.

INNOVATIVE ALL-WEATHER TECHNOLOGY

Optimal yields, whatever the weather with excellent low-light and temperature behaviour.

EXTREME WEATHER RATING

High-tech aluminum alloy frame, tested to the extreme in Australia for Australian Conditions at James Cook University Cyclone Testing Station.

STATE OF THE ART MODULE TECHNOLOGY

Q.ANTUM DUO combines cutting edge cell separation and innovative wiring with Q.ANTUM Technology.

BREAKING THE 21% EFFICIENCY BARRIER

Q.ANTUM DUO Z Technology with zero gap cell layout boosts module efficiency up to 21.1%.

Designed For Australia

Q CELLS panels are put through many strenuous tests to ensure they survive the most extreme environments. These tests include hail damage testing where they shoot balls of ice at the panels to simulate heavy hail conditions. Q CELLS also have panels being tested and compared to competitors at the Desert Knowledge Australia Solar Centre (DKASC) in Alice Springs. At this facility panels are tested for their resistance to harsh desert climates and their outputs are compared in real time on the DKASC website.

Panels 2

Q.PEAK DUO-G6+ 340-355

Q.ANTUM DUO TECHNOLOGY

  • Nominal Power

    340 – 355 Wp

  • Efficiency

    Up to 20.1 %

  • Maximum System Voltage

    1000

  • Wind/Snow Load

    4000 / 5400

  • Format

    1740 mm × 1030 mm × 32 mm

  • Weight

    19.9 kg



Q CELLS Australia

Q CELLS has supported the Australian community since 2009, longer than any other manufacturer currently on the market. With products developed specifically for Australian climates, unparallelled local support, and comprehensive testing facilities both in laboratories and in the field, we are the trusted provider for Australian consumers.

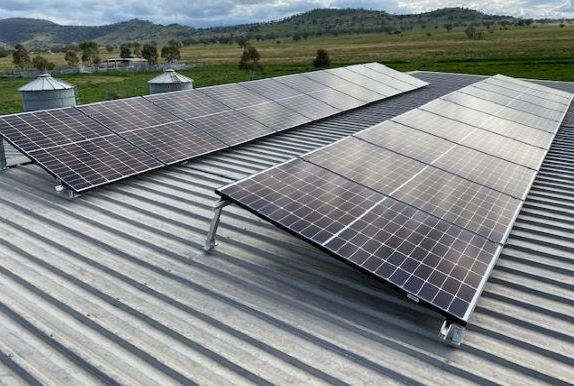

IMG 5386

Q.MAXX-G2 345-360

ENDURING HIGH PERFORMANCE

  • Nominal Power

    345 – 360 Wp

  • Efficiency

    Up to 20.4 %

  • Maximum System Voltage

    1000 V

  • Wind/Snow Load

    4000 / 5400

  • Format

    1740 mm × 1030 mm × 32 mm

  • Weight

    19.9 kg

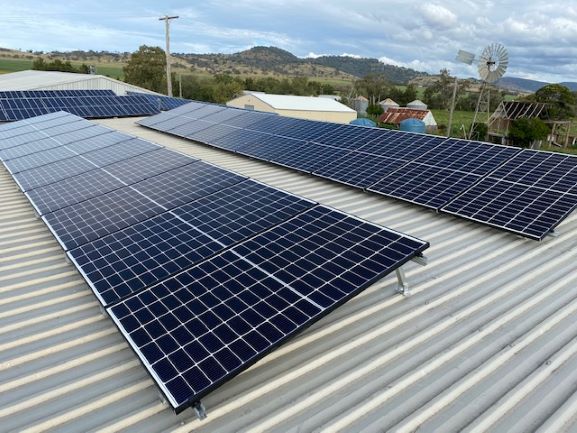

IMG 5388

Q.ANTUM TECHNOLOGY: LOW LEVELISED COST OF ELECTRICITY
Higher yield per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 20.2%.

INNOVATIVE ALL-WEATHER TECHNOLOGY
Optimal yields, whatever the weather with excellent low-light and temperature behaviour.

ENDURING HIGH PERFORMANCE
Long-term yield security with Anti LID Technology, Anti PID
Technology , Hot-Spot Protect and Traceable Quality Tra.Q™.

EXTREME WEATHER RATING
High-tech aluminium alloy frame, certified for high snow (5400Pa) and wind loads (4000Pa).

STATE OF THE ART MODULE TECHNOLOGY
Q.ANTUM DUO combines cutting edge cell separation and innovative wiring with Q.ANTUM Technology.



ENDURING HIGH PERFORMANCE

For solar cells and solar modules from Q CELLS, potential induced degradation (PID) doesn't exist. Potential induced degradation can lead to a performance loss of 20 % or more, even in the first few months. Q CELLS´ proprietary Anti PID Technology will save you from this fate. Solar cells with Hot-Spots can heat up to such a high temperature that parts of a module burn out. In the worst case scenario, a module can catch fire. The Tra.Q™ code contains information about the place and date of production. This makes it possible to trace certain production conditions for each solar cell.
